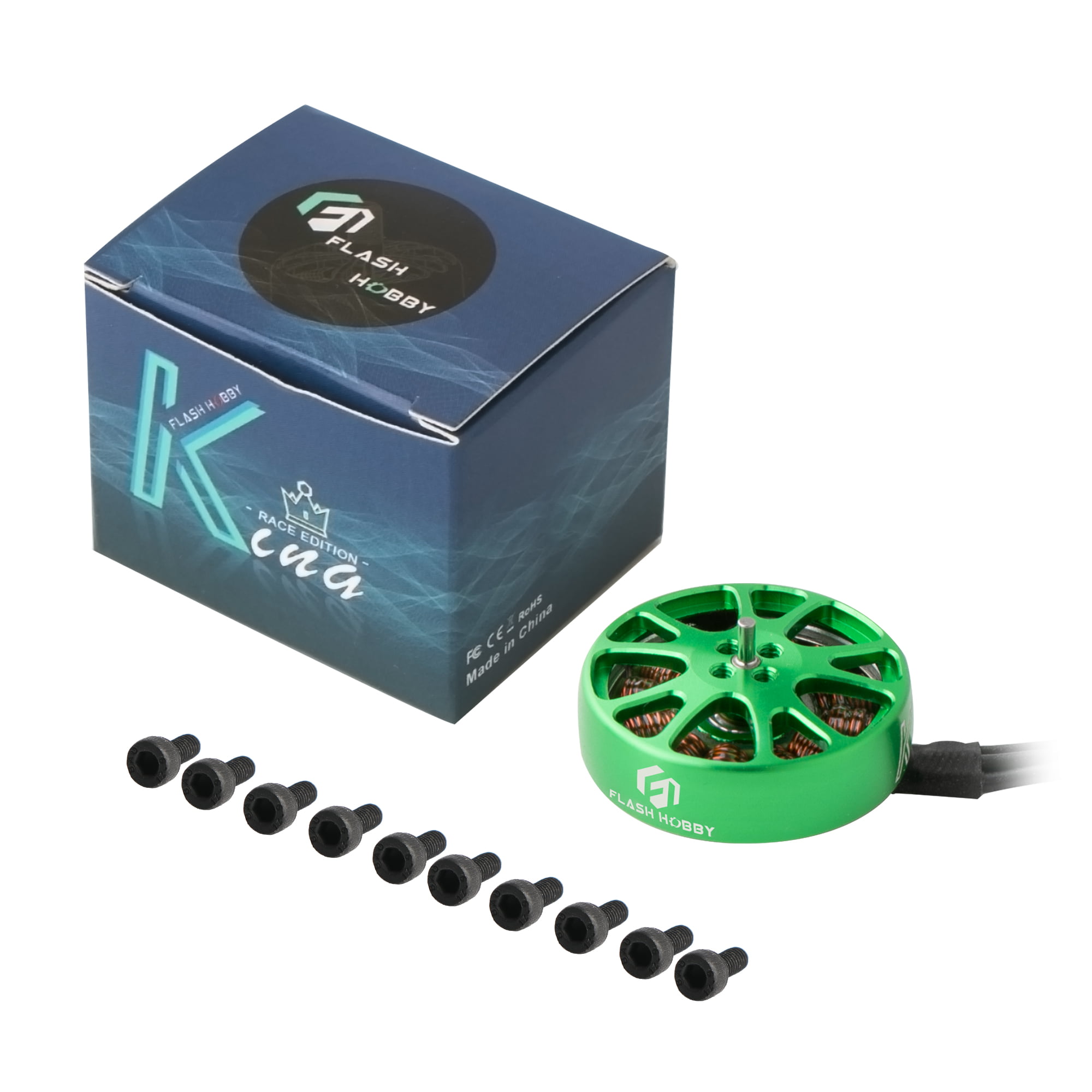

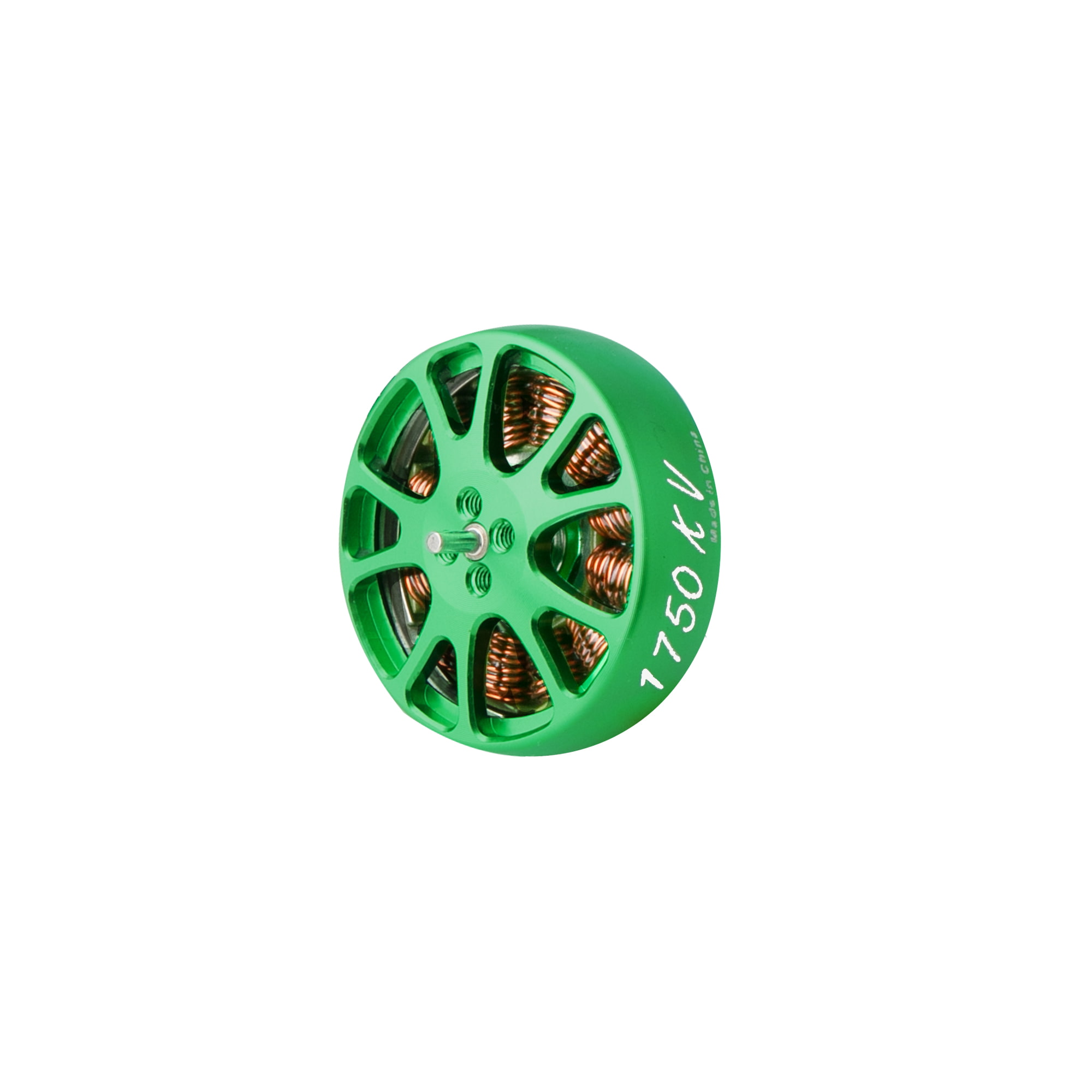

K2303 Motor Tanpa Berus
K2303 Motor Tanpa Berus
●Berat: 18.5g (termasuk kabel)
●Saiz Motor: 28.5 x 13.6mm
●Diameter aci: 3.0mm
●Diameter Lekapan Sangga: 4-M2*5
●Lekapan Motor: 12*12mm(M2*4)
●Tatarajah: 12N14P
●Kabel Motor: 24#AWG 150mm
●Berat: 18.5g (termasuk kabel)
●Saiz Motor: 28.5 x 13.6mm
●Diameter aci: 3.0mm
●Diameter Lekapan Sangga: 4-M2*5
●Lekapan Motor: 12*12mm(M2*4)
●Tatarajah: 12N14P
●Kabel Motor: 24#AWG 150mm
Model:K2303
Hantar Pertanyaan
Penerangan Produk
K2303 Motor Tanpa Berus
Spesifikasi Motor K2303-1750KV
Tarikan maksimum：845g
Volt：23.9V(6S)
ESC yang dicadangkan: 20A~30A
Kuasa Maksimum：360.9W
Arus Maksimum: 15.10A
Prop yang dicadangkan: prop 5 inci
| Tidak. | Prop | Pendikit | Volt (V) | Amps (A) | Watt (W) | Teras (g) | Kecekapan (g/W) | Beroperasi suhu(℃) |
| K2303-1750KV | 4023 | 50% | 24.3 | 1.8 | 43.7 | 162 | 3.70 | 41℃ |
| 60% | 24.2 | 2.5 | 60.5 | 207 | 3.42 | |||
| 70% | 24.2 | 3.8 | 92.0 | 292 | 3.18 | |||
| 80% | 24.2 | 5.5 | 133.1 | 386 | 2.90 | |||
| 90% | 24.1 | 6.8 | 163.9 | 451 | 2.75 | |||
| 100% | 24 | 9 | 216.0 | 539 | 2.50 | |||
| K2303-1750KV | 5125 | 50% | 24.3 | 3 | 72.9 | 279 | 3.83 | 70.7℃ |
| 60% | 24.2 | 4.3 | 104.1 | 362 | 3.48 | |||
| 70% | 24.2 | 6.4 | 154.9 | 498 | 3.22 | |||
| 80% | 24.1 | 8.3 | 200.0 | 616 | 3.08 | |||
| 90% | 24.0 | 11.4 | 273.6 | 758 | 2.77 | |||
| 100% | 23.9 | 15.1 | 360.9 | 845 | 2.34 |
