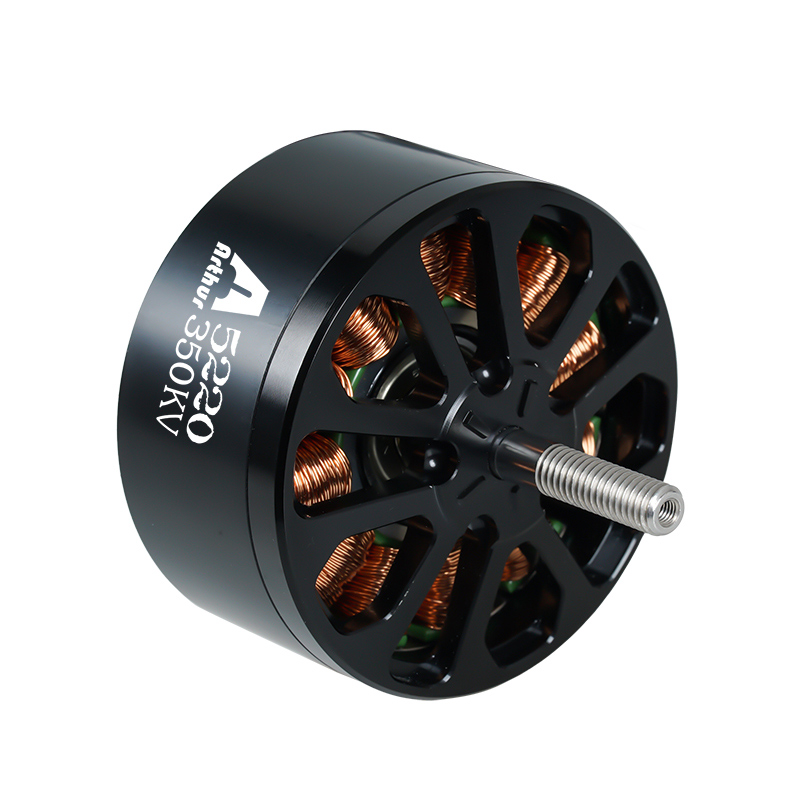

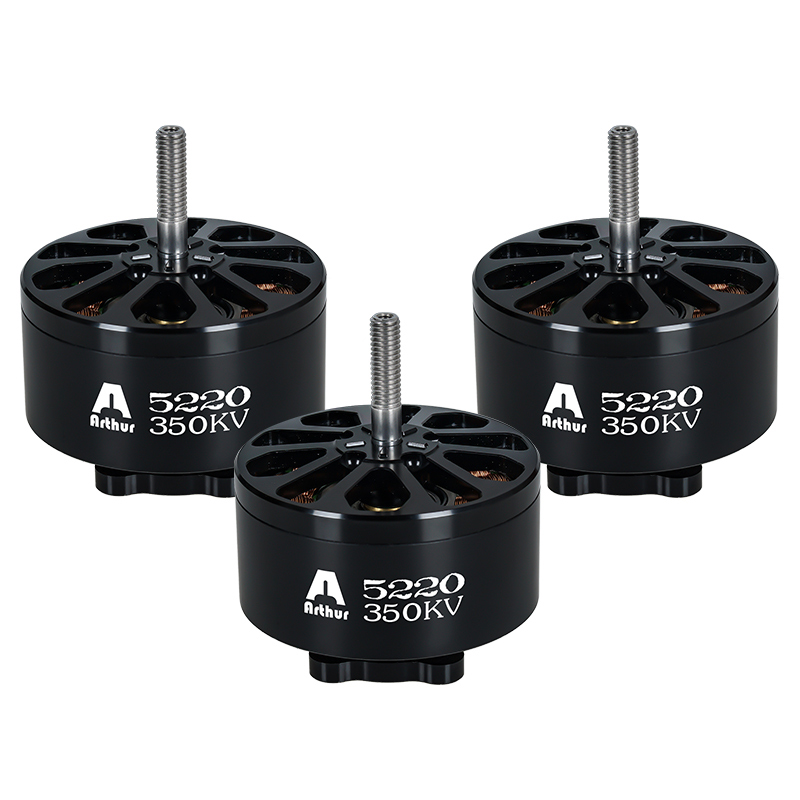

A5220 Motor Berus
China A5220 Brush Motor Factory secara langsung membekalkan. Flash Hobby adalah pengeluar dan pembekal motor berus A5220 berskala besar di China.
● Berat: 412g (termasuk kabel)
● Saiz motor: 60.8x46mm
● Diameter aci: 6.0mm
●Motor Mount: 30*30mm(4-M4)
● Konfigurasi: 12n14p
● Kabel Motor: 16AWG-600mm
● Nilai KV: 350kV dan 500kV atau KV disesuaikan
● Mengesyorkan: Permohonan Prop 13 ~ 15 "inci
● Berat: 412g (termasuk kabel)
● Saiz motor: 60.8x46mm
● Diameter aci: 6.0mm
●Motor Mount: 30*30mm(4-M4)
● Konfigurasi: 12n14p
● Kabel Motor: 16AWG-600mm
● Nilai KV: 350kV dan 500kV atau KV disesuaikan
● Mengesyorkan: Permohonan Prop 13 ~ 15 "inci
Model:A5220
Hantar Pertanyaan
Penerangan Produk
The following is an introduction to A5220 Brushless Motor, I hope to help you better understand A5220 Brushless Motor. Welcome new and old customers to continue to cooperate with Flash Hobby to create a better future together!
Features:
52H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

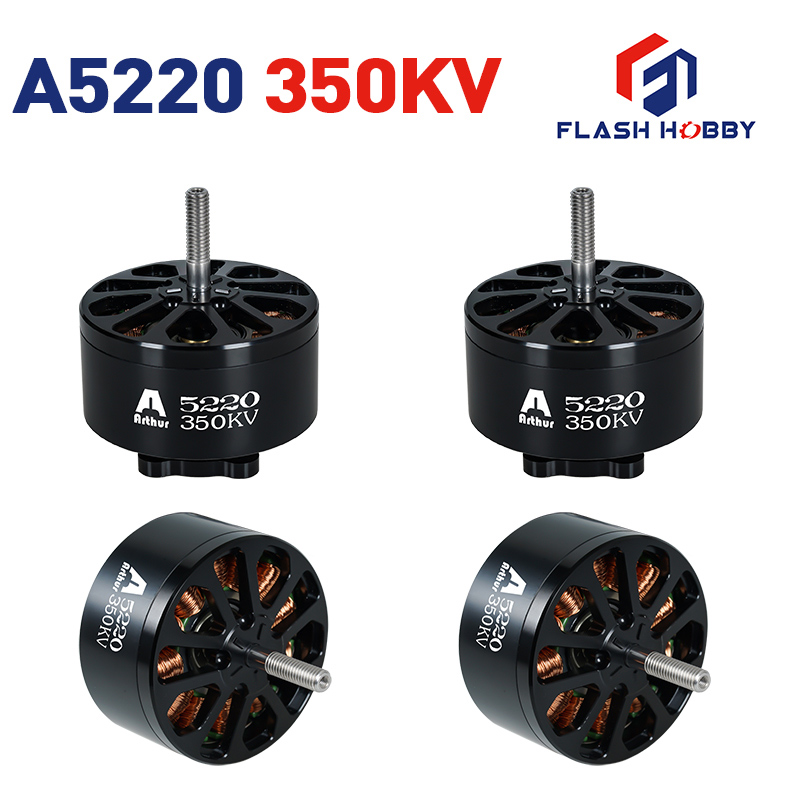

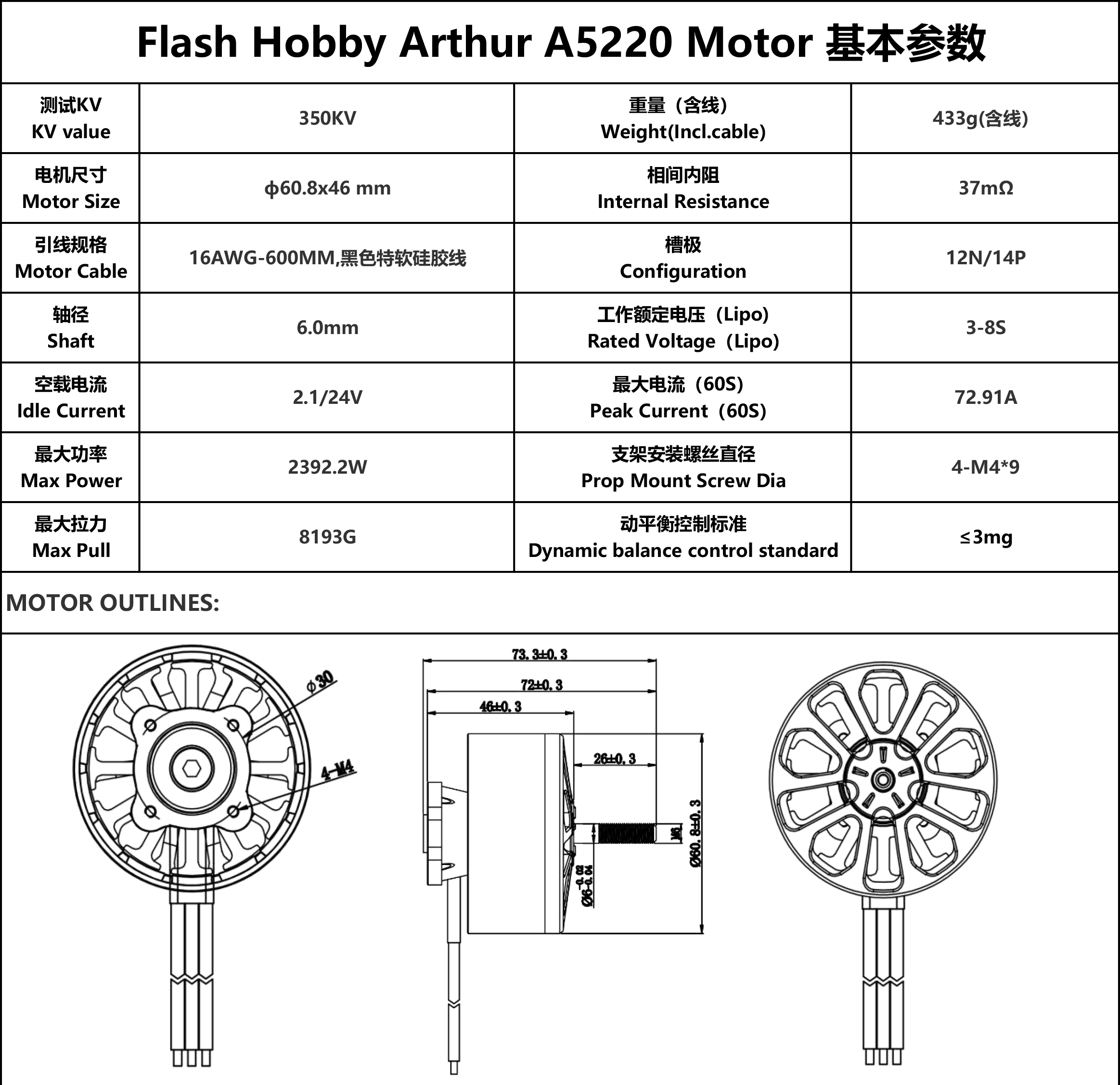

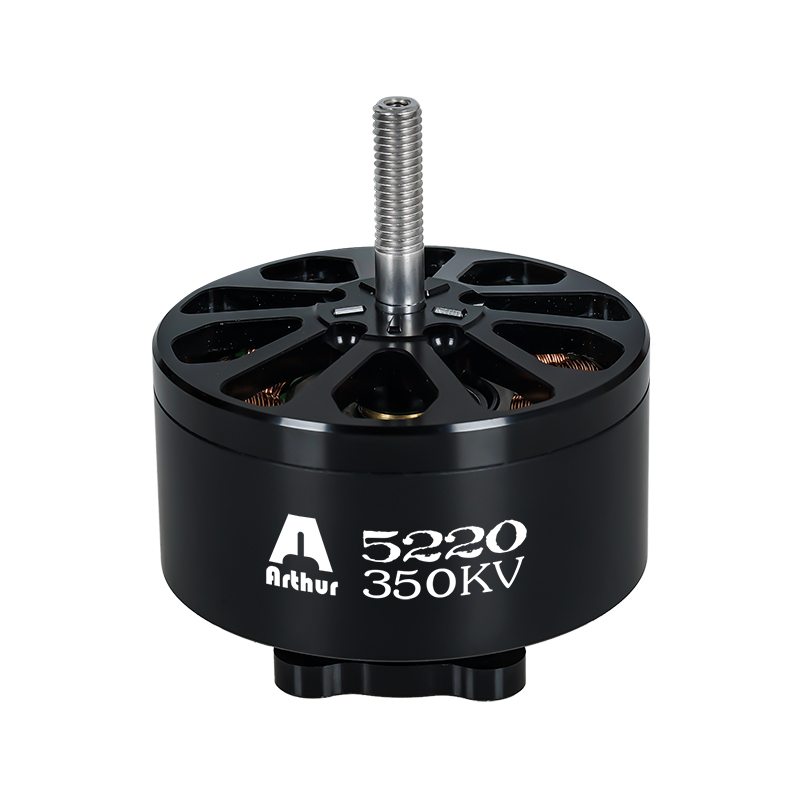

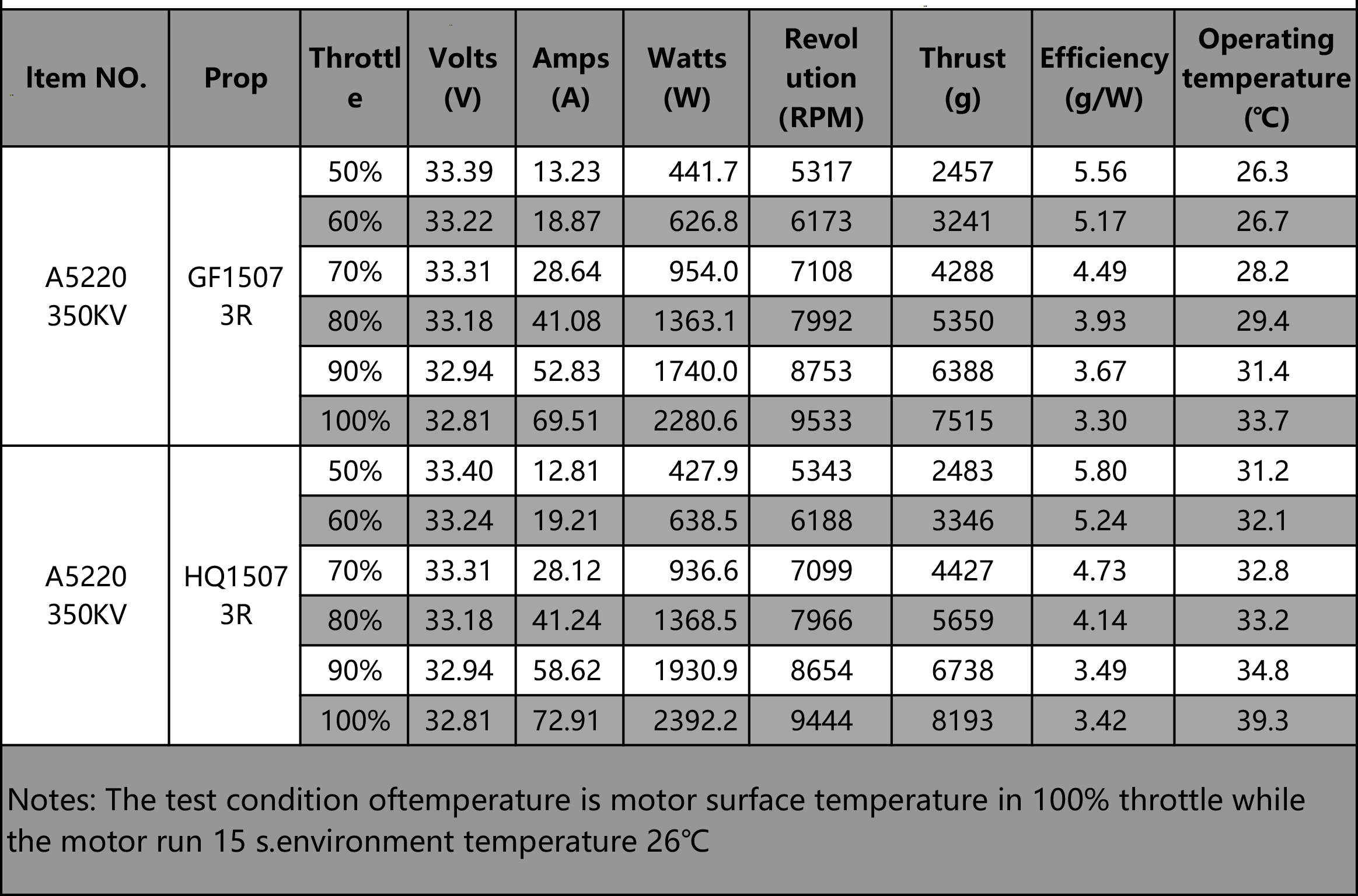

A5220KV 350KV Motor Specification
Max pull：8193g
Volts：33.6V(8S)
Suggested ESC: 60A~80A
Maximum Power：2392.2W
Suggested Prop: 13~15 inch prop

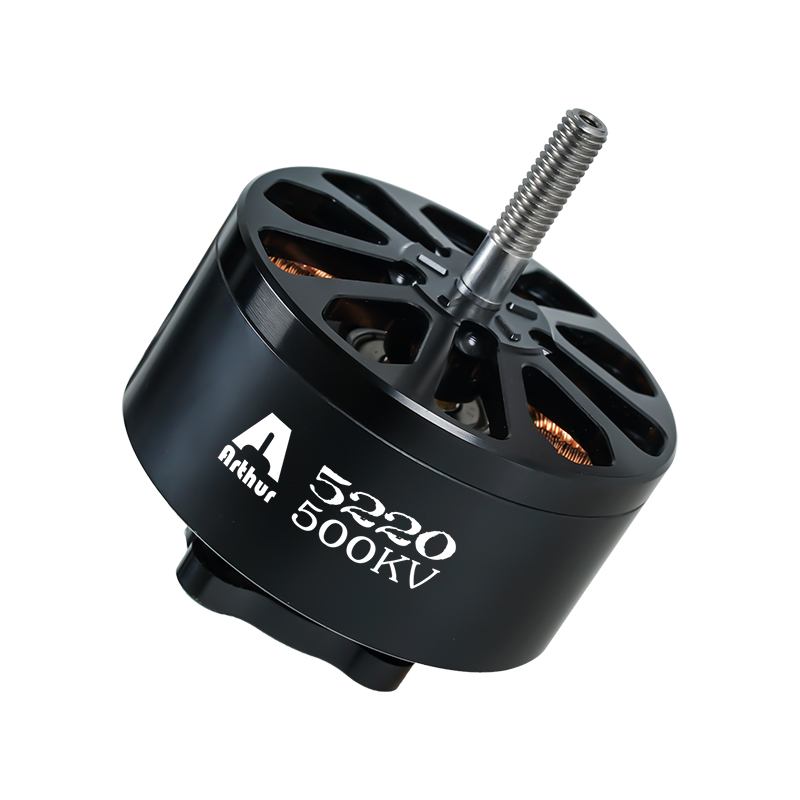

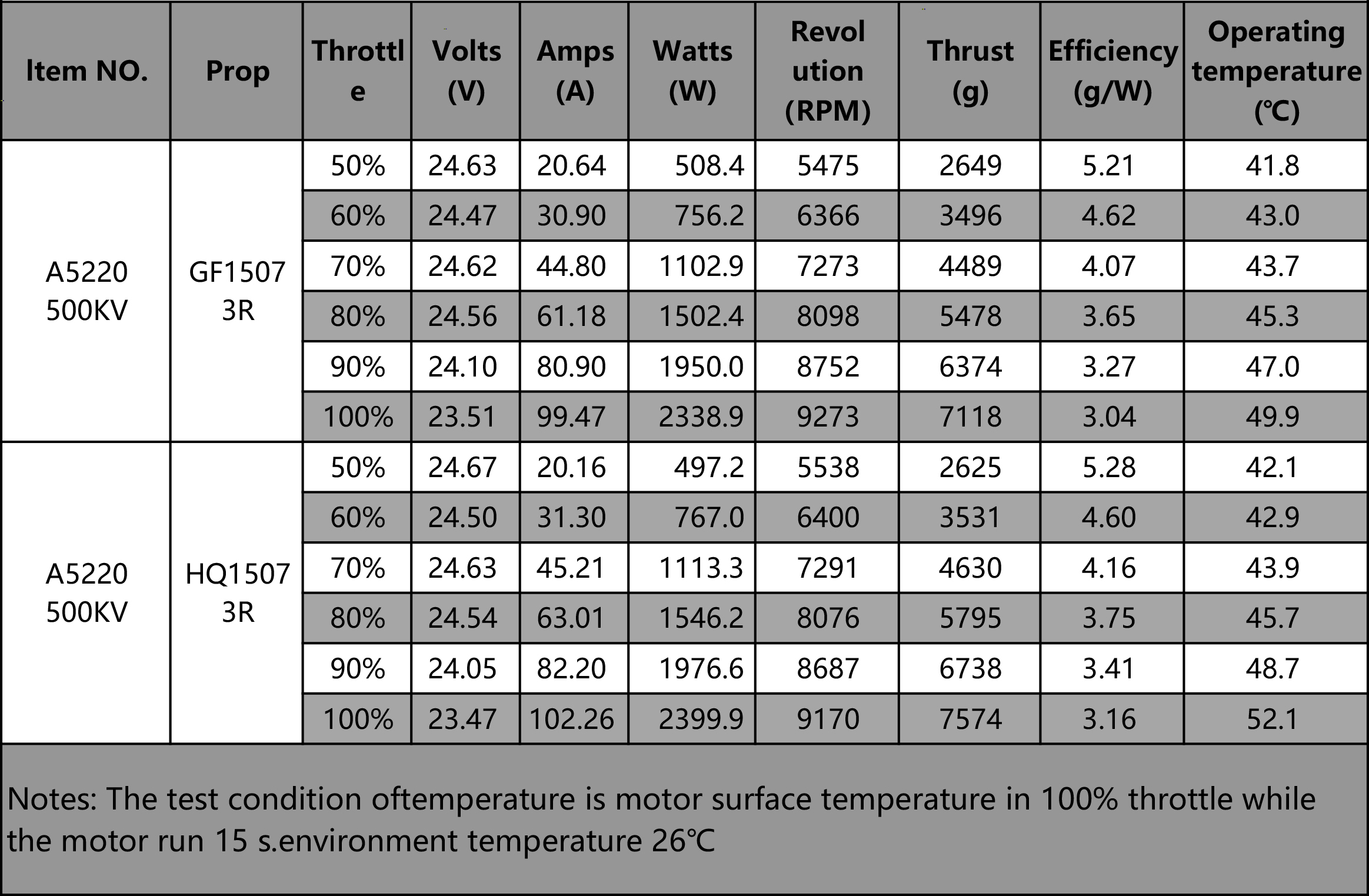

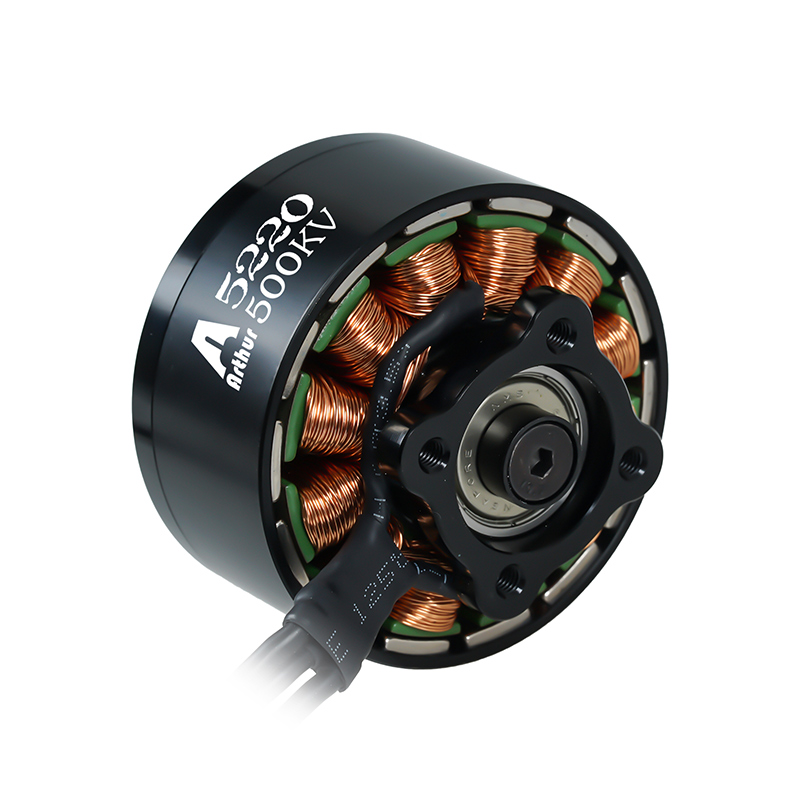

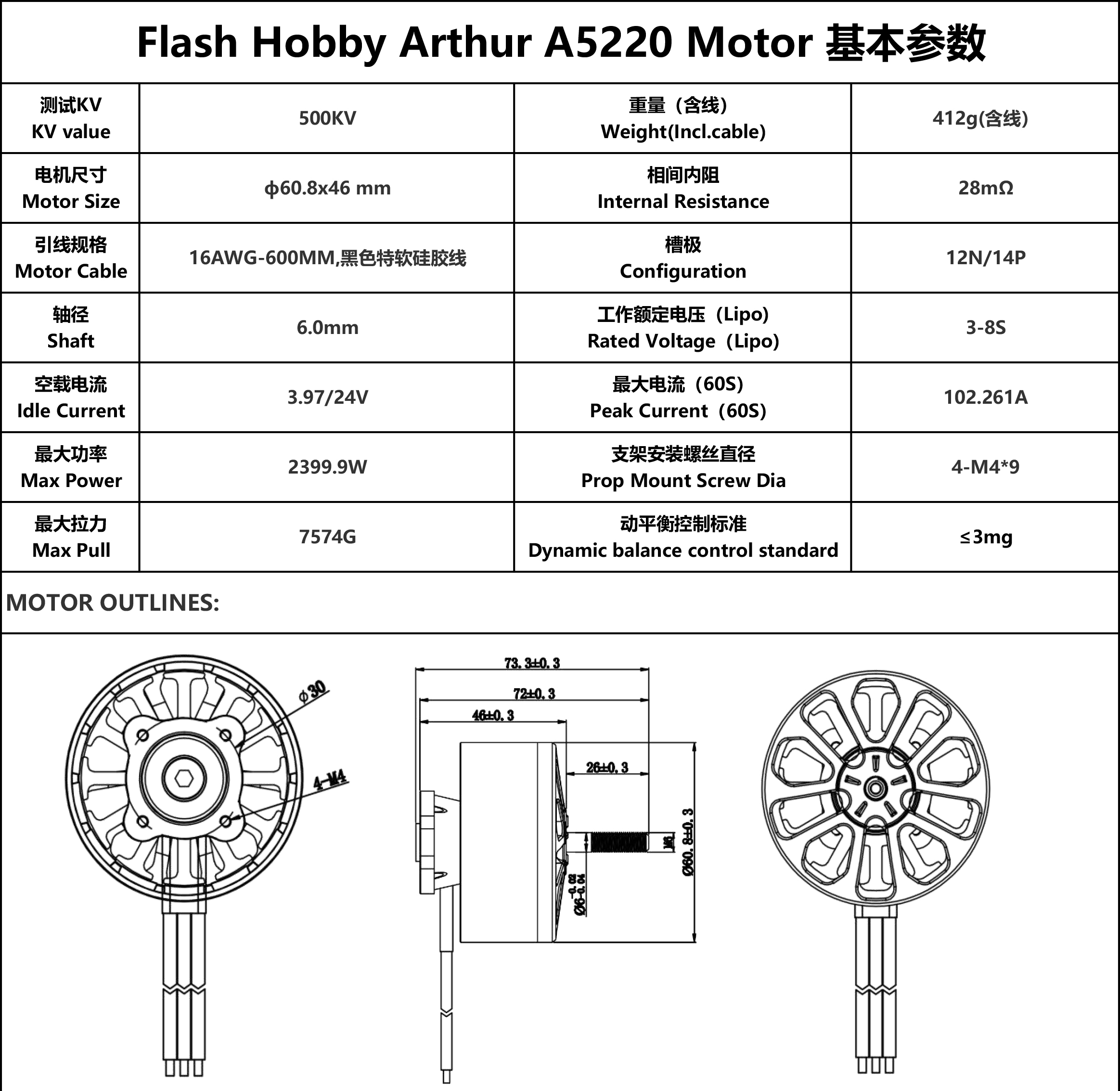

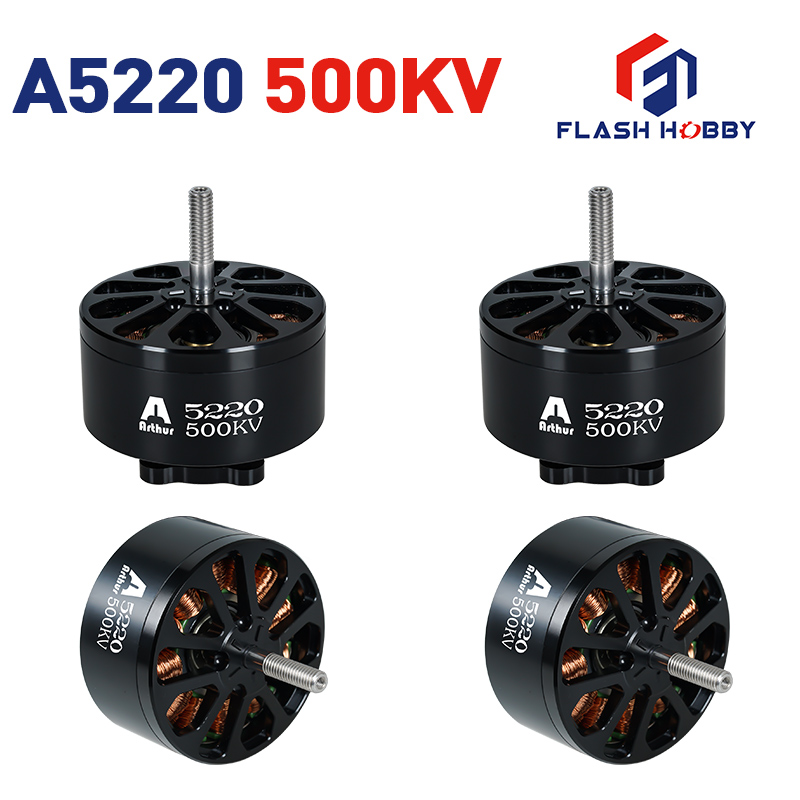

A5220KV 500KV Motor Specification
Max pull：7574g
Volts：25.2V(8S)
Suggested ESC: 80A~100A
Maximum Power：2399.9W
Suggested Prop: 13~15 inch prop
