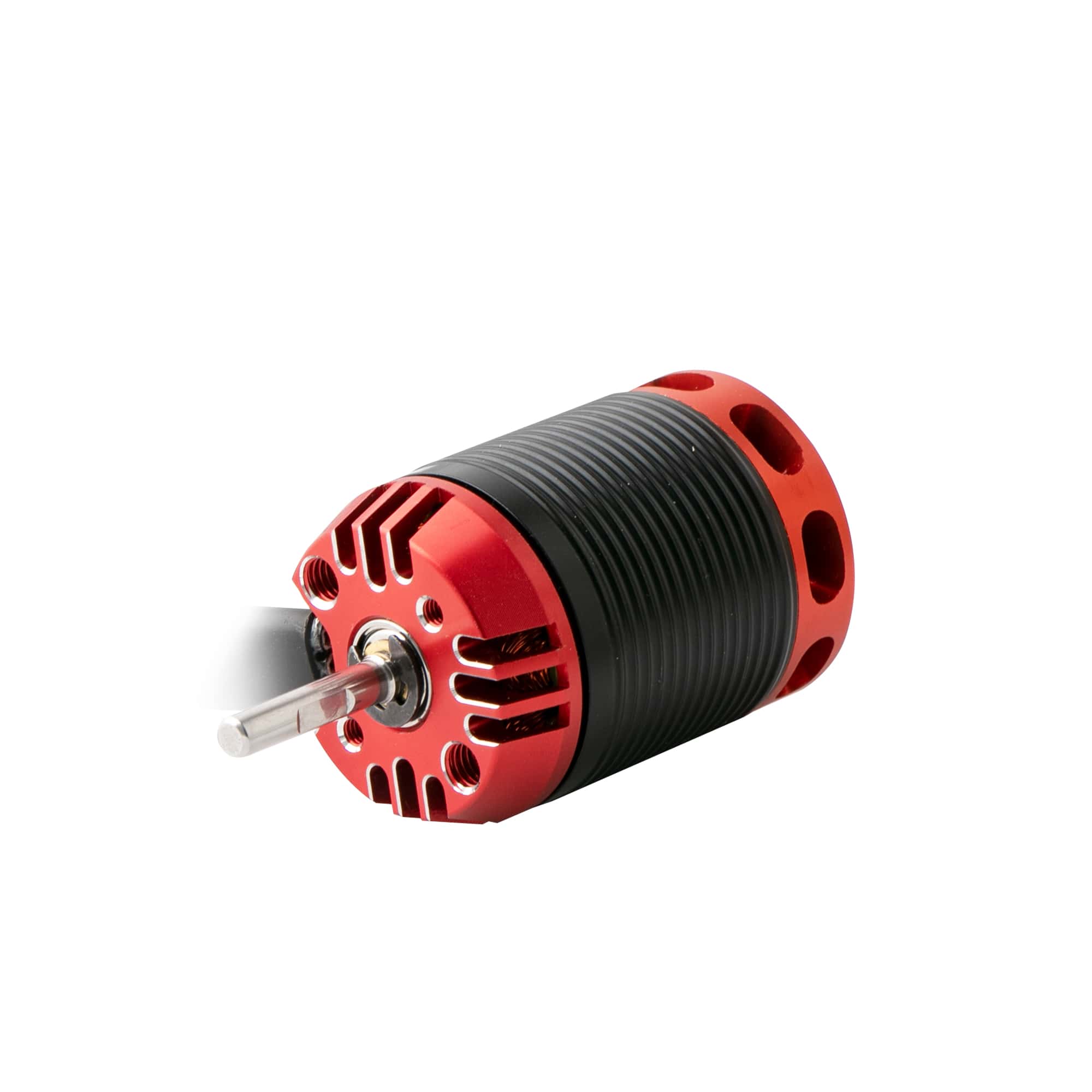

H450 Helicopter Motor
H450 Helicopter Motor
● Berat: 94g (termasuk kabel)
● Saiz motor: 29.4*38.5mm
● Stator diameter: 22mm
● Ketinggian Stator: 22mm
● Diameter aci: 3.5mm
● Mount Motor: 16x19mm (M3*4)
● Konfigurasi: 9n / 6p
● Berat: 94g (termasuk kabel)
● Saiz motor: 29.4*38.5mm
● Stator diameter: 22mm
● Ketinggian Stator: 22mm
● Diameter aci: 3.5mm
● Mount Motor: 16x19mm (M3*4)
● Konfigurasi: 9n / 6p
Model:H450 Helicopter Motor
Hantar Pertanyaan
Penerangan Produk
H450 Helicopter Motor
Kv: 1850Kv
Max Current: 30a
Max Power: 1080W
Semasa terbiar: 2.5a
Rintangan: 0.0382Ω
Aci: 3.5mm
Berat: 94g
Cadangan ESC: 45A
Lipe: 2-7s
Penyambung: Penyambung lelaki 3.5mm
Kv: 3800kv
Max Current: 40a
Max Power: 950W
Semasa terbiar: 3.8a
Rintangan: 0.0182Ω
Aci: 3.5mm
Berat: 94g
Cadangan ESC: 65A
Bibir: 2-4s
Penyambung: Penyambung lelaki 3.5mm
Lukisan Motor:
| Motor Kv | Enjin kv | 1850rpm/v |
| Tiada arus beban | Semasa terbiar (IO/10V) | 2.5a |
| Hayat bateri lithium | Sel lipo | 2-6s |
| Berat motor | Berat | 94g |
| Arus berterusan maksimum | Max Continuous Current | 30a |
| Kuasa berterusan maksimum | Kuasa berterusan max | 720W |
| Semasa puncak maksimum | Max Peak Current | 45a (2seconds) |
| Kuasa puncak maksimum | Max Peak Power | 1080w (2seconds) |
| Bilangan tiang slot | Configu-ration | 9n / 6p |
| Rintangan dalaman motor | Rintangan Motor (RM) | 0.0382 OH |
| Diameter stator | Diameter stator | 22mm |
| Ketebalan stator | Ketebalan stator | 22mm |
| Diameter motor | Diameter motor | 29.4mm |
| Output aci diameter | Diameter aci | 3.5mm |
| Panjang motor | Panjang badan motor | 38.5mm |
| Panjang paksi keseluruhan | Panjang aci keseluruhan | 55.5mm |
| Jarak lubang pemasangan | Jarak lubang bolt | 16/19mm |
| Spesifikasi lubang pemasangan | Benang bolt | M2.5/M4 |
| palam | Sambungan | 3.5mm |
| Sudut motor | Masa Motor | 5deg |
| Kekerapan pemacu | Kekerapan pemacu | 8kHz |
| Motor Kv | Enjin kv | 3800rpm/v |
| Tiada arus beban | Semasa terbiar (IO/10V) | 3.8a |
| Hayat bateri lithium | Sel lipo | 2-4s |
| Berat motor | Berat | 94g |
| Arus berterusan maksimum | Max Continuous Current | 40a |
| Kuasa berterusan maksimum | Kuasa berterusan max | 650W |
| Semasa puncak maksimum | Max Peak Current | 65A (2seconds) |
| Kuasa puncak maksimum | Max Peak Power | 950W (2seconds) |
| Bilangan tiang slot | Configu-ration | 9n / 6p |
| Rintangan dalaman motor | Rintangan Motor (RM) | 0.0182 OH |
| Diameter stator | Diameter stator | 22mm |
| Ketebalan stator | Ketebalan stator | 22mm |
| Diameter motor | Diameter motor | 29.4mm |
| Output aci diameter | Diameter aci | 3.5mm |
| Panjang motor | Panjang badan motor | 38.5mm |
| Panjang paksi keseluruhan | Panjang aci keseluruhan | 55.5mm |
| Jarak lubang pemasangan | Jarak lubang bolt | 16/19mm |
| Spesifikasi lubang pemasangan | Benang bolt | M2.5/M4 |
| palam | Sambungan | 3.5mm |
| Sudut motor | Masa Motor | 5deg |
| Kekerapan pemacu | Kekerapan pemacu | 8kHz |
